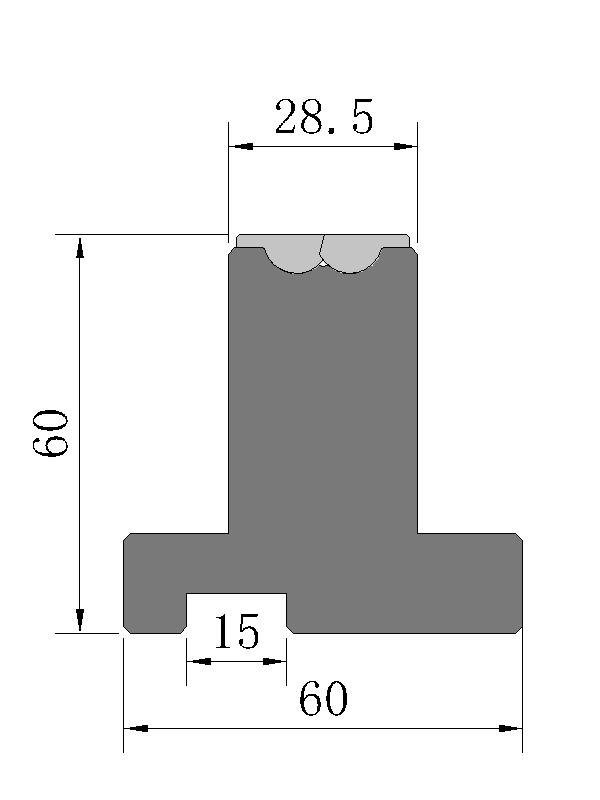

RVP60-1

$300.00
  • Vee Opening: V=8mm
  • Max Thickness T=2mm
  • Flange Length b=4.2mm
  • Height: H=60mm
  • Width: 28.5mm
  • Hardness: HRC55-60
  • Tonnage: 100Ton/m (30.5Ton/ft)

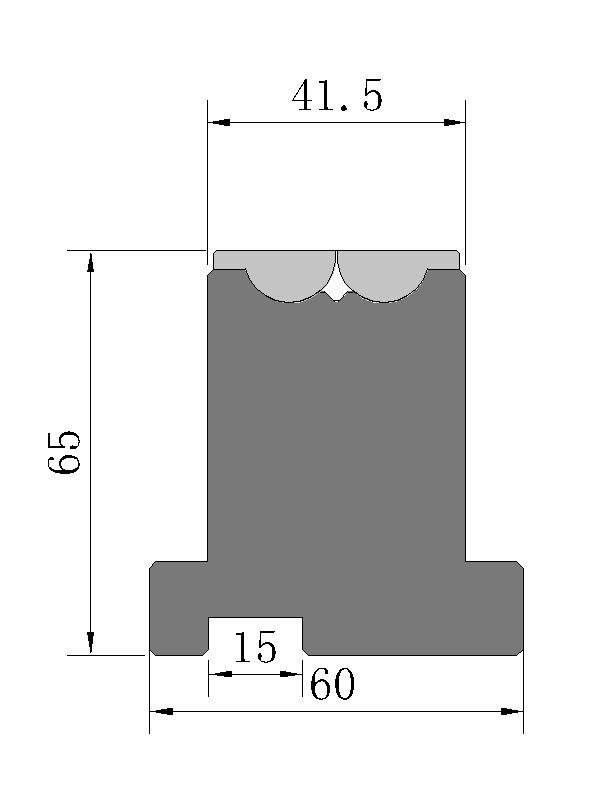

RVP65-2

$300.00
  • Vee Opening: V=15mm
  • Max Thickness T=3.5mm
  • Flange Length b=9.3mm
  • Height: H=65mm
  • Width: 41.5mm
  • Hardness: HRC55-60
  • Tonnage: 150Ton/m (45.7Ton/ft)

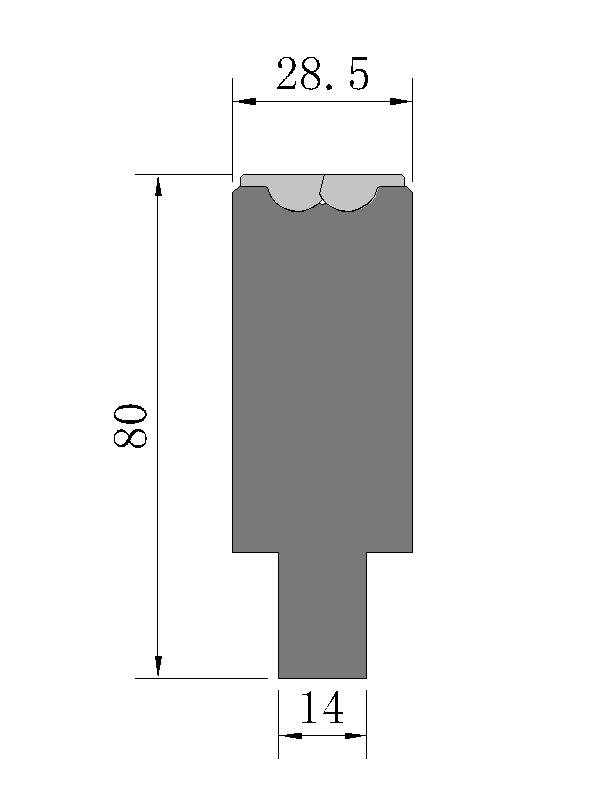

RVS80-1

$300.00
  • Vee Opening: V=8mm
  • Max Thickness T=2mm
  • Flange Length b=4.2mm
  • Height: H=80mm
  • Width: 28.5mm
  • Hardness: HRC55-60
  • Tonnage: 100Ton/m (30.5Ton/ft)

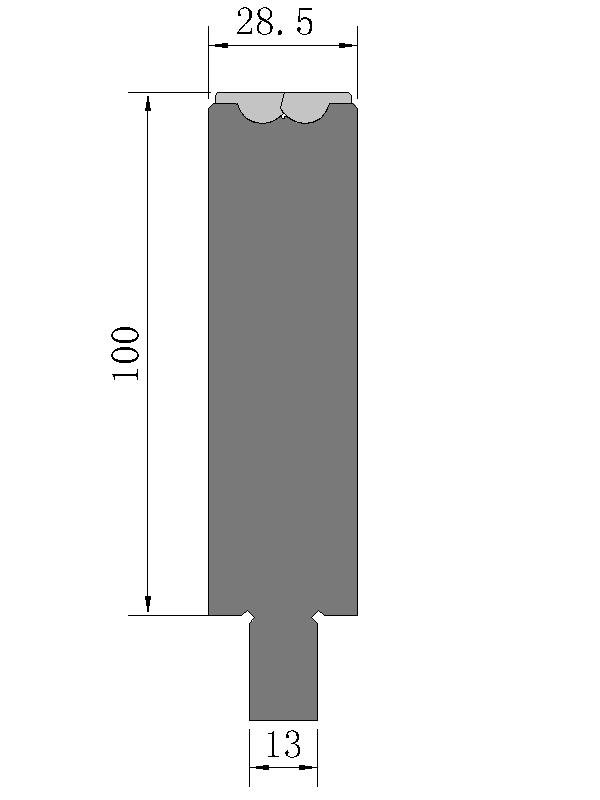

RVT100-1

$300.00
  • Vee Opening: V=8mm
  • Max Thickness T=2mm
  • Flange Length b=4.2mm
  • Height: H=100mm
  • Width: 28.5mm
  • Hardness: HRC55-60
  • Tonnage: 100Ton/m (30.5Ton/ft)

RVT55-1

$300.00
  • V形开口：V=8毫米
  • 最大厚度 T=2mm
  • 法兰长度 b=4.2mm
  • 高度：H=55毫米
  • 宽度：28.5毫米
  • 硬度：HRC55-60
  • 吨位：100吨/米（30.5吨/英尺）

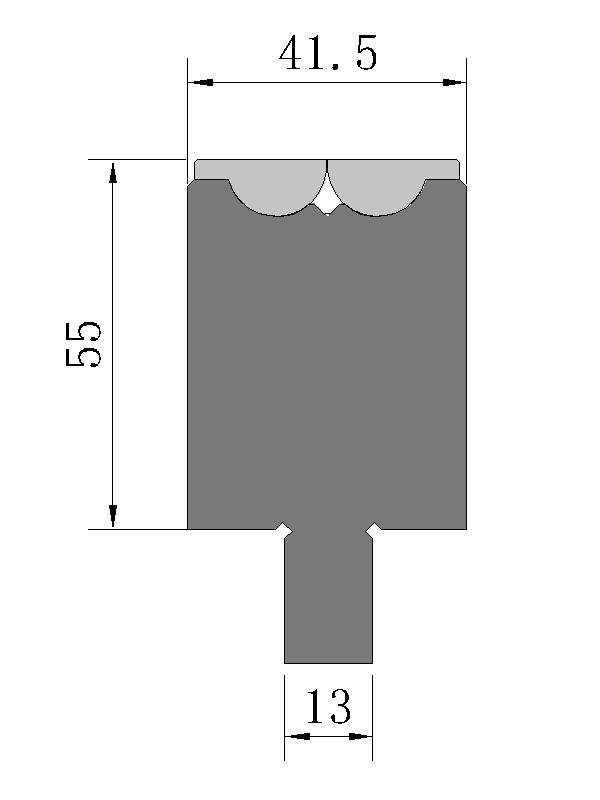

RVT55-2

$300.00
  • V形开口：V=15毫米
  • 最大厚度 T=3.5mm
  • 法兰长度 b=9.3mm
  • 高度：H=55毫米
  • 宽度：41.5毫米
  • 硬度：HRC55-60
  • 吨位：150吨/米（45.7吨/英尺）
  • 长度=510毫米

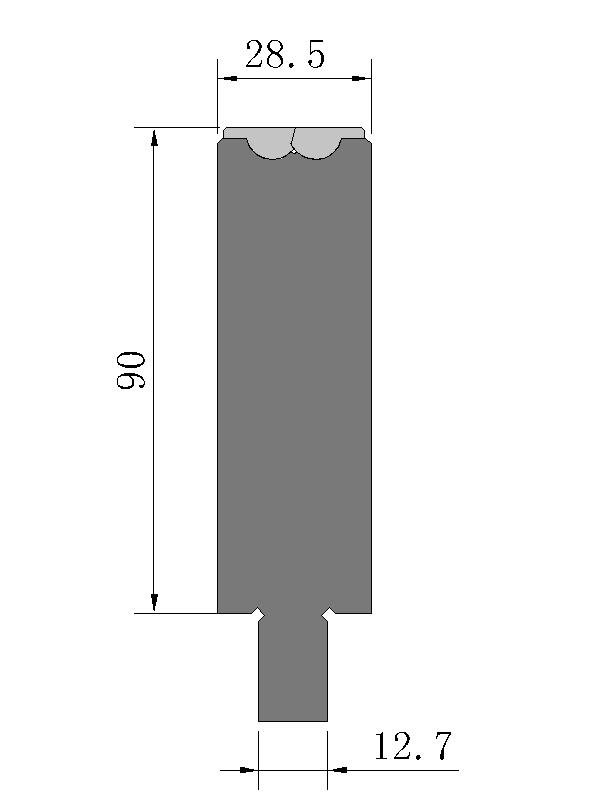

RVT90-1

$300.00
  • Vee Opening: V=8mm
  • Max Thickness T=2mm
  • Flange Length b=4.2mm
  • Height: H=90mm
  • Width: 28.5mm
  • Hardness: HRC55-60
  • Tonnage: 100Ton/m (30.5Ton/ft)

UM601

$250.00
  • Vee Openging: V=32mm
  • Max Thickness T=2mm
  • Flange Length b=4.2mm
  • Height: H=60mm
  • Width: 60mm
  • Hardness: HRC45-50
  • Tonnage: 100Ton/m (30.5Ton/ft)

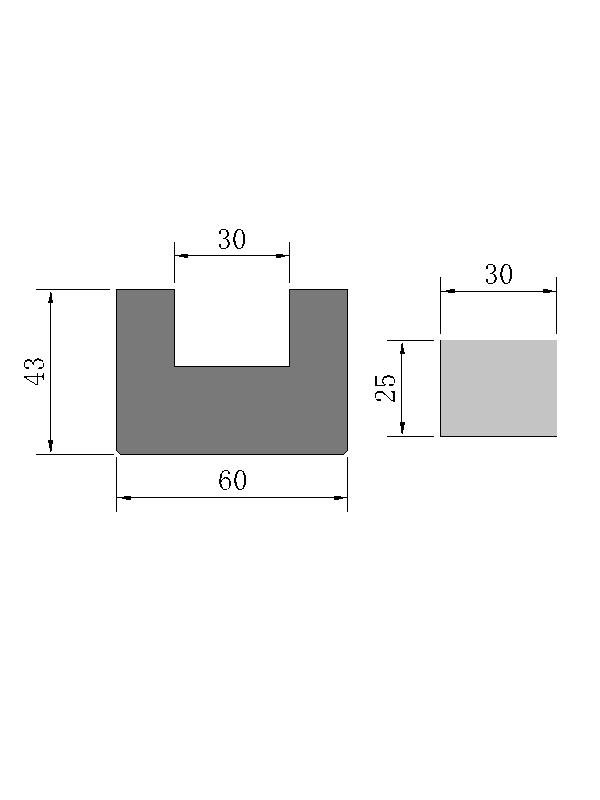

UM602

$260.00
  • Vee Opening: V=32mm
  • Max Thickness T=2mm
  • Flange Length b=4.2mm
  • Height: H=43mm
  • Width: 60mm
  • Hardness: HRC45-50
  • Tonnage: 100Ton/m (30.5Ton/ft)

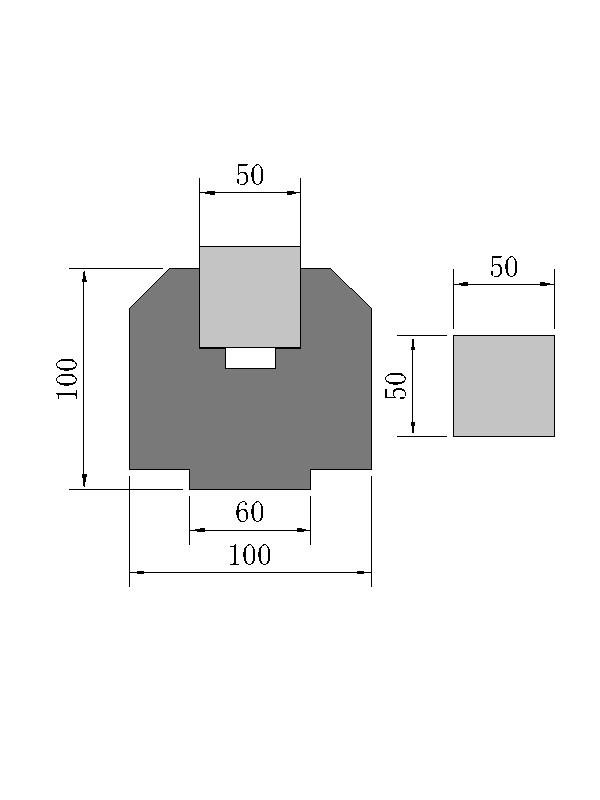

UM603

$400.00
  • Vee Opening: V=32mm
  • Max Thickness T=2mm
  • Flange Length b=4.2mm
  • Height: H=100mm
  • Width: 100mm
  • Hardness: HRC45-50
  • Tonnage: 100Ton/m (30.5Ton/ft)

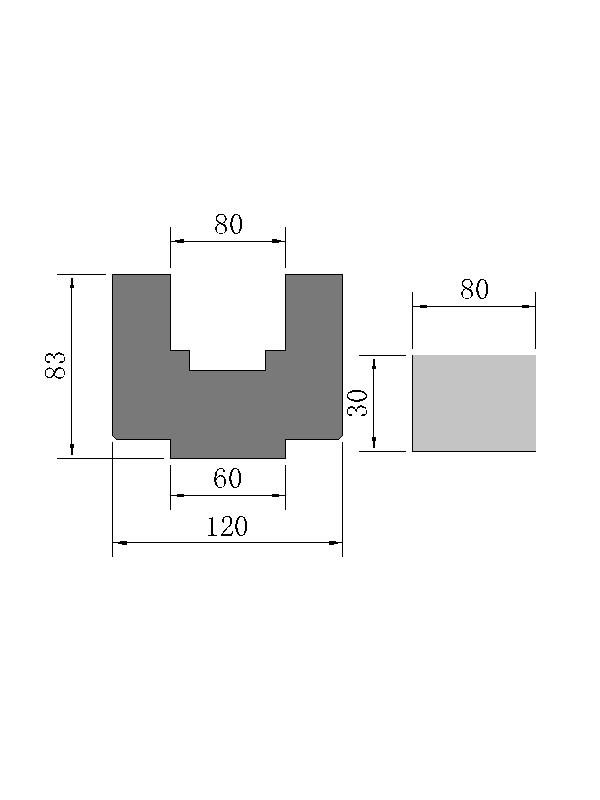

UM604

$450.00
  • Vee Opening: V=32mm
  • Max Thickness T=2mm
  • Flange Length b=4.2mm
  • Height: H=83mm
  • Width: 120mm
  • Hardness: HRC45-50
  • Tonnage: 100Ton/m (30.5Ton/ft)

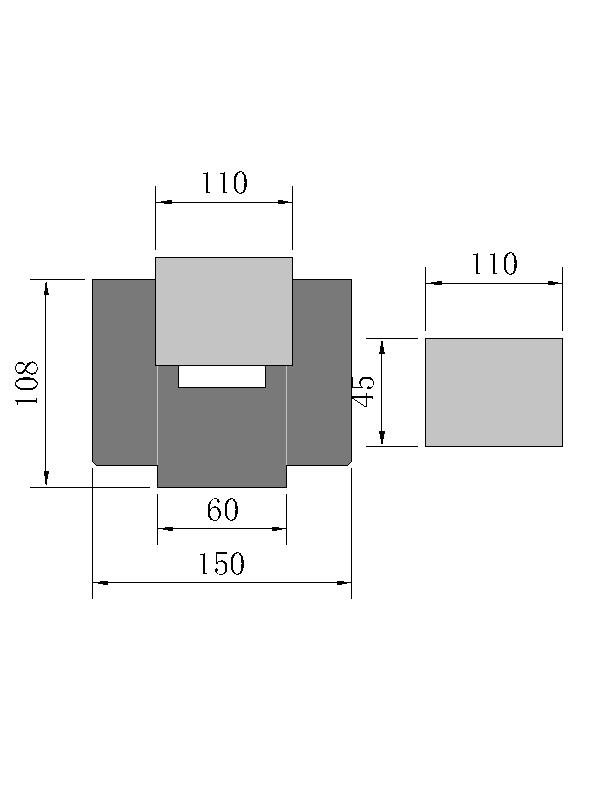

UM605

$450.00
  • Vee Opening: V=32mm
  • Max Thickness T=2mm
  • Flange Length b=4.2mm
  • Height: H=108mm
  • Width: 150mm
  • Hardness: HRC45-50
  • Tonnage: 100Ton/m (30.5Ton/ft)
